DACE | EXO-7 Receiver 7ch 433Mhz

The DACE Exo 7 Channel Receiver

NOTE: This receiver is only compatible with the black EXO remotes

This is the latest generation of the DACE long range receiver that work with the new Ultima motors.

Like its predecessor the Wips it has a range of up 1.2KM line of sight, unlike the Wips you can now get up to 630 individual remote codes stored on this receiver

Features:

• 12 - 24 Volt DC
• Range of 1.2KM line of sight
• Up to 630 individual codes
• Available 403 or 433 MHz (Universal Code Hoping)
• 1 x Onboard Relay
• 6 x Open Collector Outputs (max. 80mA per channel)
• One remote button can activate multiple channels
• Outputs can be Pulsed or Latched

Inclusions:

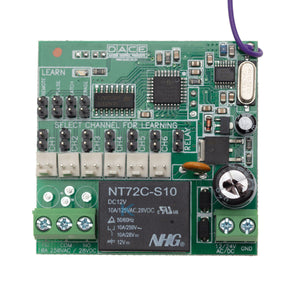

• 1 x EXO 7 receiver board

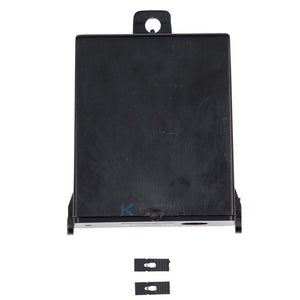

• 1 x Plastic casing for board

Instructions

EXO 7 Instructions
